10kw split-phase hybrid inverter 99.9% MPPT efficiency IP65

Name: 10kw split-phase hybrid inverter 99.9% MPPT efficiency IP65
Brand: RESUN ENERGY CO,.LTD
SKU: R-16KUS
Availability: InStock

Detalhes do produto:

Lugar de origem:	China
Marca:	RESUN
Certificação:	FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12)
Número do modelo:	R-16KUS

Informações pormenorizadas

Lugar de origem:

China

Marca:

RESUN

Certificação:

FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12)

Número do modelo:

R-16KUS

Modelo:

R-16KUS

Classificação de potência:

16kW

Eficiência máxima:

98%

Faixa de temperatura operacional:

-25 ~ 60 ℃

Compatibilidade com a bateria:

Li-ion / definido pelo utilizador

Tensão nominal da bateria:

48V

Método de resfriamento:

Resfriamento do ventilador

Faixa de tensão de entrada:

50/60Hz

Voltagem PV INPUT DC, corrente:

120-500V, 4*20A

Interface de comunicaçãoInterface:

RS485, 4G (opcional), Wi-Fi

Certificações:

FCC Parte 15 Classe B; UL1741SA todas as opções, UL1699B, CSA 22.2; IEEE1547

Garantia:

5 anos

Destacar:

High Light

Destacar:

10kw split-phase hybrid inverter

hybrid inverter with MPPT efficiency

IP65 rated split-phase inverter

Informações de negociação

Quantidade de ordem mínima:

1 unidade

Preço:

negotiable

Tempo de entrega:

3-30 dias

Termos de pagamento:

T/T

Habilidade da fonte:

10.000

Descrição do produto

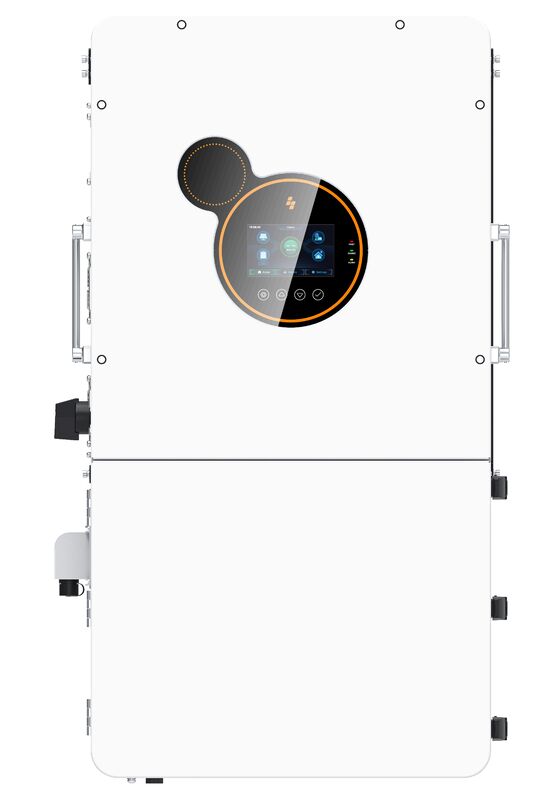

10kw Split-Phase Hybrid Inverter 99.9% MPPT Efficiency IP65

10kw Split Phase Hybrid Inverter 120/240VAC Pure Sine Wave for Home/Farm

Introducing the R-10KUS 10kw split phase hybrid inverter, ideal for home and farm solar storage. With 99.9% MPPT efficiency and dual 32A+32A trackers, it captures maximum solar energy via 15kW total PV input.

KEY STRENGTHS

Output high-quality pure sine wave AC power
IP65 protection degree for outdoor durability
Industrial design with modern aesthetic look
Easy to install and simple to use
Exclusive Li-ion battery BMS dual activation

Technical Specifications

Model	RO-10KUS
Rated Output Power	10000W
Max. Peak Power	1.5 times rated power @10 S; 2 times rated power @0.5 S
Rated Output Voltage	120/240Vac (Split-phase); 120/208V (Three-phase) ✓
Max. Continuous Output Current	@240V 41.7A @208V 48.1A
Load Motor Capacity	6HP
Locked Rotor Amps (LRA)	123A (Ipeak)
Rated AC Frequency	50/60Hz ✓
Waveform	Pure Sine Wave
Parallel Capacity	1 to 6 units (2 or more units can form a three-phase output)

Battery Specifications

Battery Type	Li-ion / Lead-Acid / User Defined ✓
Rated Battery Voltage	48Vdc
Battery Voltage Range	40 ~ 60Vdc ✓
Max. Grid Charging Current	200A ✓
Max. Generator Charging Current	90A ✓
Max. Hybrid Charging Current	240A ✓

PV Input Specifications

No. of MPPT Trackers	2
Max. PV Array Power	7500W+7500W
Max. PV Input Current	32A+32A
Short-Circuit Current Isc	40A+40A
Max. Open Circuit Voltage	550Vdc/550Vdc
MPPT Voltage Range	125 ~ 450Vdc/125 ~ 450Vdc

Grid / Generator Input

Input Voltage Range	90 ~ 140Vac
Input Frequency Range	50Hz/60Hz
Continuous Grid Pass through Current	200A

Efficiency Ratings

MPPT Tracking Efficiency	99.9%
Max. Efficiency	97.5%
CEC Efficiency	96.5%

Communication & Connectivity

Communication Port	RS485 / CAN / USB / Dry contact
External Modules	Wi-Fi / GPRS (Optional)

Physical & Environmental Specifications

Dimensions	840440260mm
Weight	48kg
Protection Degree	IP65
Operating Temperature Range	-25~60℃, >45℃ derated
Noise	<60dB
Self-consumption	<100W
Cooling Method	Heat sink + intelligent fan cooling

Certifications & Standards

Safety Standards	UL1741&IEEE1547.1-2020, CEC, RULE 21, HECO
EMC	FCC 15 class B
RoHS	Yes
