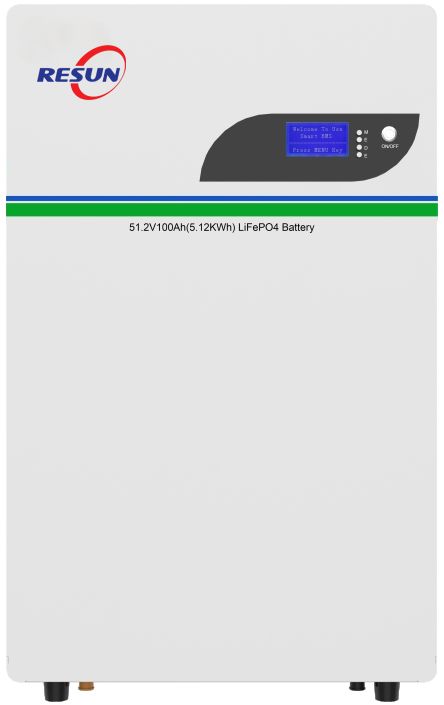

5.12 KWh LFP Smart Control Expandable Energy Storage Battery

5.12 KWh LFP Smart Control Expandable Energy Storage Battery

Detalhes do produto:
Lugar de origem: China
Marca: RESUN
Certificação: -
Número do modelo: ES-WM2-5
Informações pormenorizadas
Lugar de origem:
China
Marca:
RESUN
Certificação:
-
Número do modelo:
ES-WM2-5
Modelo:
ES-WM2-5
Tensão nominal:
51.2V
Capacidade:
100AH
Energia:
5.12KWh
Tipo de Bateria:
3.2V 100A H (16 S 1 P)
Projetar vida:
Mais de 10 anos
Temperatura operacional:
Carregamento: 0 ~ + 55 °C; Descarga: -20 ~ + 60 °C; Armazenamento: -20 ~ + 60 °C
Dimensões:
495*540*217mm
Destacar:

High Light

Destacar:

5.12 KWh LFP energy storage battery

,

expandable low voltage battery

,

smart control energy storage system

Informações de negociação
Quantidade de ordem mínima:
1
Tempo de entrega:
3-30 dias
Termos de pagamento:
T/T.
Habilidade da fonte:
10000
Descrição do produto
5.12 KWh LFP Smart Control Expandable Energy Storage Battery
Product Specifications
Attribute Value
Model ES-WM2-5
Rated Voltage 51.2V
Capacity 100Ah
Energy 5.12KWh
Battery Type 3.2V 100A H (16 S 1 P)
Design Life More than 10 years
Operating Temperature Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C
Dimensions 495*540*217mm
Product Overview

The LFP Intelligent Controllable Expandable Energy Storage Battery adopts advanced lithium iron phosphate (LFP) technology, featuring excellent safety performance and a long service life. Its built-in intelligent battery management system (BMS) accurately monitors battery status, preventing overcharging, over-discharging and overheating to ensure safe, stable operation under various conditions.

With an innovative modular design, this battery supports flexible capacity expansion. It adapts to both small household and medium commercial energy storage needs--users can easily add battery modules to scale capacity on demand, avoiding resource waste or insufficient capacity from inaccurate initial estimates.

It is easy to install and use, with a standardized interface and compact structure for quick deployment. Equipped with multiple communication ports, it connects seamlessly to smart devices and energy management systems. Users can remotely monitor power levels and charge-discharge status via a mobile app or computer for intelligent energy management.

Key Features
  • Enhanced Safety: LFP cells with advanced BMS ensure maximum protection and stability.
  • Long-Lasting Performance: 6000+ cycles at 80% DoD, with a 5-year warranty for peace of mind.
  • Intelligent Monitoring: Optional LCD, Bluetooth, and WiFi for real-time performance tracking.
  • Broad Compatibility: Seamlessly integrates with most inverter brands for effortless setup.
  • Scalable Design: Supports up to 16 parallel connections, allowing flexible capacity expansion.
Technical Parameters
Model ES-WM2-5
Rated Capacity 100Ah (5KWH)
Rated Voltage 51.2V
Discharge Cut-off Voltage 43.2V
Charge Limiting Voltage 58.4v
Maximum Continuous Discharge Current 100A
Maximum Charge Current 100A
Weight About 54 kg
Parallel Connection Optional parallel connection (up to 16P)
Dimensions (L*W*H) mm 495*540*217mm
Battery Type 3.2V 100A H (16 S 1 P)
Design Life More than 10 years
Cycle Life > 6000 times(0.2C,@25°℃,80%DOD)
Protocol (Optional) Modbus/RS485
Operating Temperature Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C
