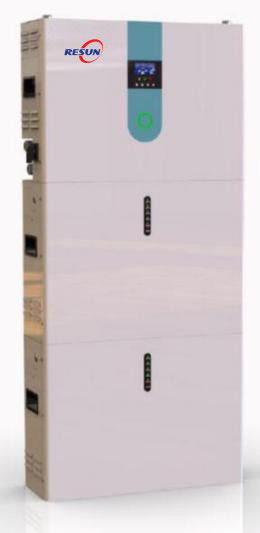

5.5KW Household Inverter - 5KWh Battery Safety All - in - One Unit
• 5.5KW inverter+10KWh battery safety integrated, strong capacity stable power supply
• The all-in-one machine integrates multiple protections, ensuring the safety of the entire process of power storage and inversion
• Wall mounted to save space, suitable for household peak and valley electricity consumption and emergency backup power
FEATURES
• Large capacity and efficient power storage: With a rated capacity of 200Ah and a stable voltage of 51.2V, it can efficiently store electrical energy to meet the continuous electricity needs of households or small commercial scenarios, laying a solid foundation for equipment endurance and emergency power supply.
• Flexible adaptation scenarios: weighing approximately 93 kilograms, with dimensions of 550, 223, and 1750 millimeters, combined with wall mounted (presumably adaptable to space installation) design, suitable for various scenarios such as homes and small businesses, easily integrating into different electrical environments, saving space and facilitating deployment.
• Stable operation in a wide temperature range: charging temperature of 0~+55 ° C, discharging temperature of -20~+60 ° C, storage temperature of -20~+60 ° C, can work stably in a wide temperature range, not afraid of complex environments such as high temperature and cold, ensuring continuity of power supply.
Description
| Parameter |
Details |
| Model |
AL-5.5K-10KWh |
| Rated Capacity |
200Ah (10KWH) |
| Rated Voltage |
51.2V |
| Discharge Cut - off Voltage |
40V |
| Charge Limiting Voltage |
58.4V |
| Maximum Continuous Discharge Current |
100A |
| Maximum Charge Current |
100A |
| Weight |
About 150 kg |
| Inverter |
5.5KW |
| Dimensions (WDH) in millimeters |
610*225*1318 |
| Battery Type |
3.2V 100AH (16S1P) |
| Design Life |
More than 6 years |
| Cycle Life |
Over 3000 cycles at 80% DOD |
| Protocol (Optional) |
Modbus/RS485/CAN |
| Operating Temperature |
Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C |
